Exceptional Handling:
Run-time Error:
Run-time
errors in computer programming are a big problem and handling these errors is
serious business. Errors normally are
divided into several categories and handling them was never addressed in any
programming language except the <assert.h> header file in C. Every programmer was left to find and handle
errors with whatever methods could be created.
The Switch statement with the default case was the way to handle errors
and still is a good way. There was no
built-in error handler in any language and C++ introduced the error handler as
User-Defined methods or classes.
The
assert macro in C was used to print to the standard error an error message,
which is composed of a message, a file name and a line number. It also terminates the execution of the
program. The following is the Microsoft
assert.h header file.
#define assert(exp) (void)( (exp)
|| (_assert(#exp, __FILE__, __LINE__), 0) )
Test Case:
Example # 1 declares the “DivideByZero”
class, which is an application with a statement where there is a division by
ZERO. This application execution should
be terminated at the point where the division by zero statement is
executed. The code prompts the user
with "Press Enter key to continue" before the run-time error and the
termination of the application execution. This is an illustration of why exceptional
handling code is needed. The output is
a screen print of Microsoft J++ with an error window and is shown in Figure #
1.
Example # 1:
/***********************************************************************
** This program is an application with a statement where
there is a division by ZERO.
************************************************************************/
public class DivideByZeroProg
{
public DivideByZeroProg()
{
final int ZERO = 0;
int IntegerValue;
float FloatValue;
IntegerValue = 2;
FloatValue = 10 /
IntegerValue;
System.out.println("10
/ 2 = \t" + FloatValue);
// can not divide
by 0 directly, must use a property(variable)
IntegerValue =
ZERO;
// prompt before
bombing
System.out.println("Press
Enter key to continue");
try
{
System.in.read();
}
catch(Exception
myException)
{//
do nothing
}
FloatValue = 10 /
IntegerValue;
System.out.println("10
/ 2 = \t" + FloatValue);
}
//***************************************************
public static void main(String []
args)
{
DivideByZeroProg MyDivideByZeroProg = new DivideByZeroProg();
try
{
System.in.read();
}
catch(Exception
myException)
{//
do nothing
}
}
}
Output:
10 / 2 = 5.0
Press Enter key to continue

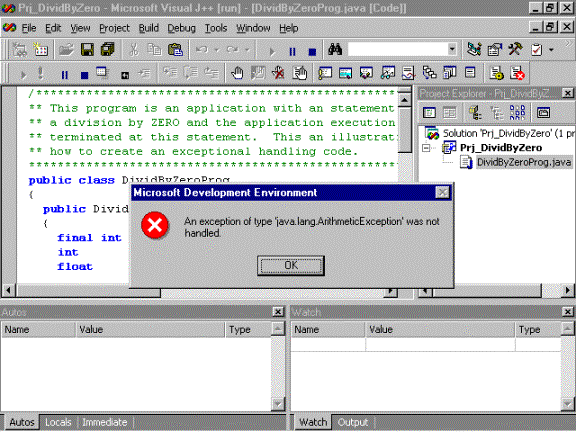

Figure
# 1 – Exception
Errors:
Errors in Java are categorized into
two types. The first error type is a non-recoverable
error, which should not be handled and the Java interpreter would display an
error message and terminate the application or applet. For example, stack over flow with
recursion. The second type is a death
threat error where the programmer code can handle such errors. Java calls these kinds of death threat
errors Exceptions.
An exception is a signal that an
abnormal condition is taking place that may terminate the program. An exception may be caught and handled.
Java Class and Subclasses – First Visit:
Java class provides a new way of
declaring a user-defined data type that has functionality. This user-defined
data type contains both the data objects and the methods that perform certain
tasks on them. A class is a way of
grouping logical data and the associated methods within one object (class).
public class myClassName
{
member data list - 0 or more
// variables which are known as properties
member method list - 0 or more
public static void main(String [] args)
{…}
}
Inheritance:
Inheritance is a mechanism that
allows type and subtype share characteristics the same way genes are passed
from parents to children. Java inheritance is implemented through the mechanism
called extending class. Inheritance
allows the member of one class to be used by another class as if the members of
the inherited class (extended) were the members of inheritee class. Inheritance is the relationship between the
parent class and child class. The
parent class is called “super-class” and child is “subclass”. The super-class
members can be referenced by the subclass and are said to be inherited by the
subclass. Java allows only single inheritance, and complements the absence of
multiple-inheritance with another mechanism known as the implementation of
interfaces.
Super-Class (Base class):
A super-class is a previously
declared class for the class being declared. A class is said to be extended
from its super-class. Super-class is
also known as a base class.
class mySuperClass
{
int mySuperClassInteger = 10;
public
mySuperClass()
{…}
//***********************************************
void
mySuperClassMethod()
{…}
}
//************************************************
public class mySubClass extends
mySuperClass
{
public
mySubClass()
{
mySuperClassInteger =
20;
mySuperClassMethod();
…
}
}
The above code declares a super-class and its subclass,
where the subclass can access the super-class member as if they were its own
members.
Throwable Class:
Java
has a class called “Throwable” which is the base class for all the exceptions.
“Throwable” has two subclasses named “Error” and “Exception”. “Throwable” class methods can be used to
display error messages as well as a stack trace of the exceptions
occurred. The following is some of the
Java “Throwable” class constructors and methods:
1.
public Throwable(); //
constructor
2.
public Throwable(String Message); // constructor
3.
public String getMessage();
4.
public Throwable fillInStackTrace();
5.
public void printStackTrace();
6.
public void printStackTrace(PrintStream Our PrintStream);
7.
public String
toString();
Programmers can create their own exception handling classes
or methods.
Programmer Exception Handling:
The idea
behind exception handling is to create traps to known errors and handle them in
the proper way using the programmer code.
The programmer has the option to create a class or method, and force
every one who calls or uses the programmer created class or method to provide
code to handle whatever the programmer lists as an exception. For example, a programmer can create a
method to trap zero values and throws an IO exception flag (clause) stating
that any caller to the programmer trap zeros method must provide code to handle
the error of the zero trap method. The
Java compiler will enforce the programmer request for the needed code, and the
application or the applet will not compile if the requested code is not found. Exceptions are enforced at compile time.
int TrapZeros(int PassedInteger)
throws
IOException // let every one
knows there is an exception to be handled.
{
if
(0 == PassedInteger)
throws new IOException();
return(PassedInteger);
}
The above code has a method called “TrapZeros” that takes an
integer as a parameter and returns an integer.
This method throws an IOException if its parameter is equal to zero,
which is an indication to the compiler that anyone who makes a call to the
“TrapZeros” method must have the proper code to handle such an exception. The compiler will enforce the throws of an
exception, and an application or an applet will not compile unless the proper
code is present.
What is the proper code that is needed?
The needed code is divided into two
parts, the first is the method or the class that is throwing an exception and
the second is the caller to this method or instantiator of the class.
The method that is throwing the exception has to create an
exception instance of the type of exception.
For example, “TrapZeros” method has the following code as an indication
to the compiler that it is throwing an exception with the “IOException()” type:
throws new IOException();
The caller must
provide “try” and “catch” clauses as the caller required code to handle the
exception.
try, catch and finally Clauses:
Once a
method throws an exception, then the caller to this method must do the
following:
1.
Use a “try” clause to execute the method (calls the method)
2.
Provide a “catch” clause if there is an error.
3.
There is an option code clause called ”finally” that will be
executed regardless if an error occurred or not.
The method that would call “TrapZeros” may have the
following code.
void CallTrapZerosMethod()
{
…
try // must make a call to the TrapZero method within “try” clause.
{
MyValue = TrapZeros(MyInteger);
…
}
catch(IOException
MyIOException)
{
System.out.println(“Error…..”);
//
two of Throwable class methods – getMethod and printStackTrace
String ErrorMessage = MyIOException.getMessage();
System.out.println("ErrorMessage =
" + ErrorMessage);
MyIOException.printStackTrace();
return;
}
finally //
optional
{
// … whatever must be done
// code that must be executed.
}
DoYourNormalThingMethod();
…
// the remaining of CallTrapZerosMethod
method code
}
The above code has a method called “CallTrapZerosMethod”
which makes a call to “TrapZeros” method mentioned earlier. In order for the above code to compile since
“TrapZeros” throws an IOException, the “CallTrapZerosMethod” method must have a
“try” clause or block. Within this “try”
clause, the call to “TrapZeros” is made.
Following the “try” clause, a “catch” clause must also be provided. Note that the “catch” clause has an argument
of the exception type, which is “IOException”.
This is a declaration of the same exception that is thrown by “TrapZeros”
method. This exception declaration is
used as an identification of the type of exception in case of multiple
exceptions. It also creates a system
object (“MyIOException “) that can be
used to call the exception (Java built-in) methods associated with this
exception type “MyIOException.printStackTrace()”.
catch(IOException
MyIOException)
{
…
String
ErrorMessage =
MyIOException.getMessage();
MyIOException.printStackTrace();
…
}
Within the “catch“ clause, the caller can write any code the
caller wishes to handle the error with or can do nothing by having an opened
and closed curly brackets “{}” with nothing between them. The above “catch” clause has code that makes
a call to each of the java.lang.Throwable.getMethod() and
java.lang.Throwable.printStackTrace() methods to illustrate some of the methods
or code that the caller can write to handle the exception. The “return”, “break” or “continue”
statement may be added to the code of the “catch” clause as it is shown .
catch(IOException
MyIOException)
{
return;
}
Test Case:
The
goal of Example # 2 is to illustrate the sequence of execution of the “try” and
“catch” clauses with an error and without an error. Every method and the “try”
and “catch” clauses print a message to indicate their sequence of execution. Example # 2 code declares
“ExceptionHandling_1” class, which declares the “CatchDivideByZeroMethod()”,
“Method_1”and “Method_2” methods. The
“CatchDivideByZeroMethod()” method throws an exception. The other two methods
call the “CatchDivideByZeroMethod()”
method and need the code to handle the exception thrown by the
“CatchDivideByZeroMethod()” method. The
“new” operator is used to create the “ArithmeticException “ exception.
if(0 == DivideByInteger)
throw new ArithmeticException();
The first method “Method_1” is designed to have an error and
the “catch” clause is executed. The “Method_2” method does the same thing, but
without an error. An “ArithmeticException” exception is thrown and the
“getMessage()” and “printStackTrace()” method are called to display their
return strings.
Example # 2:
/*******************************************************************
** This application is an illustration of how the
Exceptional handing works and it shows
** the “throws”, “try” and
“catch” clauses plus the execution sequence of statements.
********************************************************************/
public class ExceptionHandling_1
{
final int ZERO = 0;
public ExceptionHandling_1()
{
Method_1();
System.out.println("===========================================");
Method_2();
}
//**********************************************
float CatchDivideByZeroMethod(int PassedInteger, int DivideByInteger)
throws ArithmeticException
{
System.out.println("*** The start of CatchZeroDivisionMethod
****");
if(0 == DivideByInteger)
throw new ArithmeticException();
System.out.println("*** The end of CatchZeroDivisionMethod ****");
return
(PassedInteger / DivideByInteger);
}
// CatchZeroDivisionMethod
//**********************************************
void Method_1()
{
int DivideByValue
= ZERO;
int IntegerValue
= 20;
float FloatValue = -20;
System.out.println("*** The Start of Method_1 ****");
System.out.println("FloatValue
= \t" + FloatValue);
try
{
System.out.println("*** Start of Method_1 Try Clause ****");
FloatValue =
CatchDivideByZeroMethod(IntegerValue, DivideByValue);
}
catch
(ArithmeticException
MyArithmeticException)
{
System.out.println("***
Start of Method_1 Catch clause
****");
System.out.println("*** can not divide by ZERO!!!! ****");
String
ErrorMessage = MyArithmeticException.getMessage();
System.out.println("ErrorMessage
= " + ErrorMessage);
MyArithmeticException.printStackTrace();
}
System.out.println("FloatValue
= \t" + FloatValue);
System.out.println("*** The End of Method_1 ****");
} // Method_1
//**********************************************
void Method_2()
{
int DivideByValue
= 2;
int IntegerValue
= 50;
float FloatValue = -50;
System.out.println("*** The Start of Method_2 ****");
System.out.println("FloatValue
= \t" + FloatValue);
try
{
System.out.println("*** Start of Method_2 Try Clause ****");
FloatValue =
CatchDivideByZeroMethod(IntegerValue, DivideByValue);
}
catch
(ArithmeticException
MyArithmeticException)
{
System.out.println("***
Start of Method_2 Catch clause
****");
System.out.println("*** can not divide by ZERO!!!! ****");
String
ErrorMessage = MyArithmeticException.getMessage();
System.out.println("ErrorMessage
= " + ErrorMessage);
MyArithmeticException.printStackTrace();
// return;
}
System.out.println("FloatValue
= \t" + FloatValue);
System.out.println("*** The End of Method_2 ****");
} // Method_2
//***************************************************
public static void main(String []
args)
{
ExceptionHandling_1 MyExceptionHandling_1 = new ExceptionHandling_1();
try
{
System.in.read();
}
catch(Exception
myException)
{//
do nothing
}
}
}
Output:
*** The Start of Method_1
****
FloatValue = -20.0
*** Start of Method_1 Try Clause
****
*** The start of CatchZeroDivisionMethod ****
*** Start of Method_1 Catch
clause ****
*** can not divide by ZERO!!!! ****
ErrorMessage = null
java.lang.ArithmeticException
at ExceptionHandling_1.CatchDivideByZeroMethod
(ExceptionHandling_1.java:22)
at ExceptionHandling_1.Method_1
(ExceptionHandling_1.java:38)
at ExceptionHandling_1.<init>
(ExceptionHandling_1.java:13)
at ExceptionHandling_1.main (ExceptionHandling_1.java:82)
FloatValue = -20.0
*** The End of Method_1 ****
===========================================
*** The Start of Method_2
****
FloatValue = -50.0
*** Start of Method_2 Try Clause
****
*** The start of CatchZeroDivisionMethod ****
*** The end of CatchZeroDivisionMethod ****
FloatValue = 25.0
*** The End of Method_2 ****
Write a Java application that has a constructor and a
method. The method should throw an exception and the constructor should handle
it such an exception. Make the
constructor and the method write a print message to identify itself as it has
been done in Example # 2.
“finally” Clause:
The
“finally” clause provides an exception handling and a cleanup code for the
“try” clause. The “finally” clause is
optional and appears after the “try” and one or more “catch” clauses. The code in the “finally” clause is executed
once, regardless of how the code in the “try” clause executes. There are two situations where the flow of
execution takes place.
The first is a normal execution,
where the execution control reaches the end of “try” clause and then proceeds
to the “finally” clause, which generally performs any necessary cleanup. The “try” clause may have a “continue”,
“break” or “return” statement, which would send the execution control some
place in the program and out of the “try” clause. The contents of the “finally” clause will be executed before the
transfer of execution control leaves the “try” clause and ends in the new
destination.
The second situation is where an
exception has occurred and the control flow is as follows:
1.
“try” clause is
executed and an exception takes place.
2.
Secondly, the proper “catch” clause is executed and finished.
3.
The “finally” clause is executed and before the flow the
execution control is sent to any place else if “catch” clause has a “return”,
“break” or “continue” statement.
4.
Once the “finally” is executed, the execution control is sent
up to the nearest “catch” clause if there is no “return”, “break” or “continue”
statement in the “finally” clause.
The “finally” clause can transfer execution control with a
“return”, “break”, or “continue” statement or by throwing a new exception to be
handled by the caller.
Test Case:
The
goal of Example # 3 is similar to Example # 2 with the addition of the
“finally” clauses. The code shows the
sequence of execution where every method and “try”, “catch” and “finally”
clauses print a message to indicate their execution. The “ExecutionCount” counter is used to help with numbering the
execution sequence. The “finally”
clause is executed regardless of the existence of an error or not. The commented code in Example # 3 is to
illustrate the compiler handling of code that will never be reached regardless
of the outcome of the exception code.
try
{
…
return;
}
catch
(ArithmeticException
MyArithmeticException)
{
…
return;
}
finally
{
…
}
…. // the code here will never be
reached
Both “try” and “catch” clauses have a “return” statement and
the code following the “finally” clause will never be executed.
Example # 3:
/***************************************************************
** This application is an illustration of how the
Exceptional handing works and
** it shows the throws, “try”, “catch” and “finally” clauses
plus the execution
** sequence of statements.
****************************************************************/
public class ExceptionWithFinally
{
final int ZERO =
0;
int ExecutionCount
= 0;
public ExceptionWithFinally()
{
Method_1();
System.out.println("===========================================");
Method_2();
}
//**********************************************
float CatchDivideByZeroMethod(int PassedInteger, int DivideByInteger)
throws
ArithmeticException
{
ExecutionCount++;
System.out.println(ExecutionCount
+ ")***
The start of CatchZeroDivisionMethod
****");
if(0 == DivideByInteger)
throw new ArithmeticException();
ExecutionCount++;
System.out.println(ExecutionCount
+ ")*** The end of CatchZeroDivisionMethod ****");
return
(PassedInteger / DivideByInteger);
}
// CatchZeroDivisionMethod
//**********************************************
void Method_1()
{
int DivideByValue = ZERO;
int IntegerValue
= 20;
float FloatValue = -20;
ExecutionCount++;
System.out.println(ExecutionCount + ")*** The start of Method_1
****");
ExecutionCount++;
System.out.println(ExecutionCount
+ ")FloatValue = \t" + FloatValue);
try
{
ExecutionCount++;
System.out.println(ExecutionCount
+ ")*** Start of Method_1 Try Clause ****");
FloatValue =
CatchDivideByZeroMethod(IntegerValue, DivideByValue);
return;
}
catch
(ArithmeticException
MyArithmeticException)
{
ExecutionCount++;
System.out.println(ExecutionCount
+ ")***
Start of Method_1 Catch clause
****");
ExecutionCount++;
System.out.println(ExecutionCount
+ ")*** can not divide by ZERO!!!! ****");
return;
}
finally
{
ExecutionCount++;
System.out.println(ExecutionCount
+ ")***
Start of Method_1 finally clause
****");
}
/*********
*****************************************************
** This portion of the code will not be reached and the
compiler
** will not compile unless the code is commented.
*****************************************************
ExecutionCount++;
System.out.println(ExecutionCount + "**** After Method_1 finally Block
*****");
ExecutionCount++;
System.out.println(ExecutionCount
+ ")FloatValue = \t" + FloatValue);
****************************************************************
*********/
} // Method_1
//**********************************************
void Method_2()
{
int DivideByValue = 2;
int IntegerValue = 50;
float FloatValue = -50;
ExecutionCount++;
System.out.println(ExecutionCount
+ ")*** The start of Method_2 ****");
ExecutionCount++;
System.out.println(ExecutionCount
+ ")FloatValue = \t" + FloatValue);
try
{
ExecutionCount++;
System.out.println(ExecutionCount
+ ")*** Start of Method_2 Try Clause ****");
FloatValue =
CatchDivideByZeroMethod(IntegerValue,
DivideByValue);
}
catch
(ArithmeticException
MyArithmeticException)
{
ExecutionCount++;
System.out.println(ExecutionCount
+ ")***
Start of Method_2 Catch clause
****");
ExecutionCount++;
System.out.println(ExecutionCount
+ ")*** can not divide by ZERO!!!! ****");
return;
}
finally
{
ExecutionCount++;
System.out.println(ExecutionCount
+ ")***
Start of Method_2 finally clause
****");
}
ExecutionCount++;
System.out.println(ExecutionCount
+ ")**** After Method_2 finally Block *****");
ExecutionCount++;
System.out.println(ExecutionCount
+ ")FloatValue = \t" + FloatValue);
ExecutionCount++;
System.out.println(ExecutionCount
+ ")*** The End of Method_2 ****");
} // Method_2
//**************************************************
public static void main(String []
args)
{
ExceptionWithFinally MyExceptionWithFinally = new ExceptionWithFinally();
try
{
System.in.read();
}
catch(Exception
myException)
{//
do nothing
}
}
}
Output:
1)*** The start of Method_1
****
2)FloatValue = -20.0
3)*** Start of Method_1 Try Clause
****
4)*** The start of CatchZeroDivisionMethod ****
5)*** Start of Method_1 Catch
clause ****
6)*** can not divide by ZERO!!!! ****
7)*** Start of Method_1 finally
clause ****
===========================================
8)*** The start of Method_2
****
9)FloatValue = -50.0
10)*** Start of Method_2 Try Clause
****
11)*** The start of CatchZeroDivisionMethod ****
12)*** The end of CatchZeroDivisionMethod ****
13)*** Start of Method_2 finally
clause ****
14)**** After Method_2 finally
Block *****
15)FloatValue = 25.0
16)*** The End of Method_2 ****
Write a Java application that has a constructor and a
method. The method should throw an exception and the constructor should handle
it such an exception. The constructor
should have the “try”, “catch” and “finally”.
Make the constructor, the method and each of the “try”, “catch” and “finally”
blocks write a print message to identify itself as it has been done in Example
# 3.
Where can the exception handling code be located?
A
method may throw one or more exceptions, the caller to that method must provide
the “try”, “catch” and the optional “finally” clauses. In the case of a sequence of methods calls,
which method should provide the code handling? For example, if a method A1 calls B2 where B2 calls C3, which
calls D4 and D4 calls a method that throws an exception. Figure # 2 is a rough representation of the
calling sequence. Which of these
methods should provide the code handling, A1, B2, C3 or D4? The answer is any of them or all of them may
have the exception handling code, but there must be at least one method with
the exception handling code. How does
the compiler check this rule? The
compiler will go through the callers looking for exception handling code until
it gets to the system call and if it did not find the exception handling code,
it will flag it and print a compiling error.
As for the execution of the application or applet, the Java interpreter
once it encounters a throw of an exception, it will fold the stack for this
method and return to the caller. If the
caller does not have the handling code, the same thing will happen and the
folding of method’s stack continues until it reaches a method with the handling
code, or ends up in the interpreter call, where the application will be
terminated.
A1()
à
B2() à
C3() à
D4() à
MethodThrowsException()
Figure
# 2
Test Case:
The
goal in Example # 4 is to illustrate the folding of methods as the Java
interpreter searches for exception handling code. The “ExceptionHandling_2” class declares a number of methods and
its constructor has the code for handling the exception which is thrown by the
“CatchDivideByZeroMethod()” method. The
“ExceptionHandling_2” constructor executes two runs, the first is without any
error and the second with an error. The
first run executes all the methods without any folding of methods. Folding of method means terminating the
method at the exception call and before reaching the end of method code.
*** The End of CatchZeroDivisionMethod ****
****** End of Method_1 ************
****** End of CallMethod_1 ********
The end of each method message is printed in the first
run. In the second run, these end of
message strings are missing, since the Java interpreter reached the throwing of
the exception and then searches for the exception handling code. If it does not find it in the current
executing method, it folds the method without executing the rest of the method
code. It repeats such a process until
it reaches the “ExceptionHandling_2” constructor and finds the exception
handling code. At this point, it runs
the constructor normally and the constructor’s message string is printed as a normal
run. The “FloatValue” variable’s value
does not change in the second run since the exception occurs during the
division.
Example # 4:
/*******************************************************************
** This application is an illustration of how the Exception Handing
works and it
** shows the throws, try, catch clauses plus the execution
sequence of statements.
** The exception handling code can located in any of the
caller.
********************************************************************/
public class ExceptionHandling_2
{
final int ZERO = 0;
public ExceptionHandling_2()
{
int DivideByValue = 2;
int IntegerValue = 50;
float FloatValue = -50;
System.out.println("*** start of Constructor
ExceptionHandling_2 ****");
try
{
System.out.println("*** Start of the First Constructor Try
Clause ****");
FloatValue =
CallMethod_1(IntegerValue, DivideByValue);
}
catch
(ArithmeticException
MyArithmeticException)
{
System.out.println("***
Start of The First Constructor Catch clause
****");
System.out.println("*** can not divide by ZERO!!!! ****");
}
System.out.println("****
After the First Constructor catch clause “ +
“***********");
System.out.println("FloatValue
= \t" + FloatValue);
System.out.println("\n============================================\n");
DivideByValue =
ZERO;
IntegerValue = 20;
FloatValue = -20;
try
{
System.out.println("*** Start of the 2nd Constructor Try Clause ****");
FloatValue =
CallMethod_1(IntegerValue, DivideByValue);
}
catch
(ArithmeticException
MyArithmeticException)
{
System.out.println("***
Start of the 2nd Constructor Catch clause
****");
System.out.println("*** can not divide by ZERO!!!! ****");
}
System.out.println("****
After the 2nd Constructor catch clause ***********");
System.out.println("FloatValue
= \t" + FloatValue);
System.out.println("*** End of Constructor ExceptionHandling_2 ****");
}
//**********************************************
float CatchDivideByZeroMethod(int PassedInteger, int DivideByInteger)
throws
ArithmeticException
{
System.out.println("*** The start of CatchZeroDivisionMethod ****");
if(0 == DivideByInteger)
throw new ArithmeticException();
System.out.println("*** The End of CatchZeroDivisionMethod ****");
return
(PassedInteger / DivideByInteger);
}
// CatchZeroDivisionMethod
//**********************************************
float Method_1(int PassedInteger,
int DivideByInteger)
{
float FloatValue;
System.out.println("******
start of Method_1 ************");
FloatValue =
CatchDivideByZeroMethod(PassedInteger, DivideByInteger);
System.out.println("******
End of Method_1 ************");
return(FloatValue);
} // Method_1
//**********************************************
float CallMethod_1(int
PassedInteger, int DivideByInteger)
{
float FloatValue = -50;
System.out.println("******
Start of CallMethod_1 ********");
FloatValue =
Method_1(PassedInteger, DivideByInteger);
System.out.println("******
End of CallMethod_1 ********");
return(FloatValue);
} // CallMethod_1
//***************************************************
public static void main(String []
args)
{
ExceptionHandling_2 MyExceptionHandling_2 = new ExceptionHandling_2();
try
{
System.in.read();
}
catch(Exception
myException)
{//
do nothing
}
}
}
Output:
*** start of Constructor ExceptionHandling_2 ****
*** Start of the First Constructor Try Clause ****
****** Start of CallMethod_1
********
****** start of Method_1 ************
*** The start of CatchZeroDivisionMethod ****
*** The End of CatchZeroDivisionMethod ****
****** End of Method_1 ************
****** End of CallMethod_1 ********
**** After the First Constructor
catch clause ***********
FloatValue = 25.0
====================================================
*** Start of the 2nd Constructor Try Clause ****
****** Start of CallMethod_1
********
****** start of Method_1 ************
*** The start of CatchZeroDivisionMethod ****
*** Start of the 2nd Constructor
Catch clause ****
*** can not divide by ZERO!!!! ****
**** After the 2nd Constructor
catch clause ***********
FloatValue = -20.0
*** End of Constructor ExceptionHandling_2 ****
Rewrite Example # 4 with, but remove “Method_1()” from the
class and trace the result of your Java application.
Multiple Exception handling:
Multiple
Exception handling is divided into multiple throws and/or nested throws. A method or a class can throw multiple
exceptions, and within the “try”, “catch” or “finally” clauses a new nested
exception’s throws can be made.
Test Case:
Example
# 5 code is an attempt to show a method that throws multiple exceptions. Example # 5 declares the
“MultipleExceptions” class, which declares the “Method_1()” and the
“MultiExceptionMethod()” methods. The “MultiExceptionMethod()”
method throws a number of exceptions, and “Method_1()” calls the
“MultiExceptionMethod()” method and passes to it an integer parameter that goes
throw an “if” statement where a different exception is selected. The first run of the “Method_1()” method
does not execute any exception and only the “try” and “finally” clauses are
executed. With this run the
“FloatValue” value will change from –20 to 10 and the “MultiExceptionMethod()”
is executed without any exception handling folding of method. This means that none of the exceptions is
thrown and the “MultiExceptionMethod()” method reaches its last statement and
returns its argument :
“return
(PassedInteger)”;
Basically, the following code is executed and its output is
as shown below the code:
try
{
…
FloatValue =
MultiExceptionMethod(IntegerValue);
}
output:
8)FloatValue
= 10.0
The following three runs of the “MultiExceptionMethod()”
method throw different exceptions and different “catch” clause is
executed. The “FloatValue” never
changes from –20 since the “MultiExceptionMethod()” method never reaches its
end due to its folding at the throws of the exception. The execution control is
transferred to “Method_1” to handle the exception before the
“MultiExceptionMethod()” reaches its end.
The “try” and “finally” clauses are executed with
“MultiExceptionMethod()” method runs, but different “catch” clause is executed
depending on which exception is thrown.
The output of Example # 5 shows the execution sequence and the value of
“FloatValue”. The “FloatValue” is used
to illustrate the folding of methods when an exception takes place.
Example # 5:
/*******************************************************************
** This application is an illustration of Multiple
Exceptions
********************************************************************/
import java.io.*;
import java.lang.*;
public class MultipleExceptions
{
int ExecutionCount
= 0;
public MultipleExceptions()
{
Method_1(10);
promptForCarriageReturn();
System.out.println("===========================================");
Method_1(2);
promptForCarriageReturn();
System.out.println("===========================================");
Method_1(1);
promptForCarriageReturn();
System.out.println("===========================================");
Method_1(0);
}
//**********************************************
float MultiExceptionMethod(int PassedInteger)
throws rithmeticException,
IOException,
IndexOutOfBoundsException
{
ExecutionCount++;
System.out.println(ExecutionCount+
")*** The start of
MultiExceptionMethod ****");
if(0 ==
PassedInteger)
throw new ArithmeticException();
else
if(1 == PassedInteger)
throw new IOException();
else
if(2 == PassedInteger)
throw new IndexOutOfBoundsException();
ExecutionCount++;
System.out.println(ExecutionCount+
")*** End of MultiExceptionMethod
****");
return
(PassedInteger);
}
// MultiExceptionMethod
//**********************************************
void Method_1(int IntegerValue)
{
float FloatValue = -20;
ExecutionCount++;
System.out.println(ExecutionCount + ")*** The start of Method_1
****");
ExecutionCount++;
System.out.println(ExecutionCount
+ ")FloatValue = \t" + FloatValue);
try
{
ExecutionCount++;
System.out.println(ExecutionCount
+ ")*** Start of Method_1 Try Clause ****");
FloatValue =
MultiExceptionMethod(IntegerValue);
}
catch
(ArithmeticException
MyArithmeticException)
{
ExecutionCount++;
System.out.println(ExecutionCount
+ ")*** Start of
ArithmeticException catch Clause
****");
}
catch (IOException MyIOException)
{
ExecutionCount++;
System.out.println(ExecutionCount
+ ")***
Start of IOException catch Clause
****");
}
catch
(IndexOutOfBoundsException
MyIndexOutOfBoundsException)
{
ExecutionCount++;
System.out.println(ExecutionCount
+ ")*** Start
of IndexOutOfBoundsException catch + “Clause
****");
}
finally
{
ExecutionCount++;
System.out.println(ExecutionCount
+ ")***
Start of Method_1 finally clause
****");
}
ExecutionCount++;
System.out.println(ExecutionCount+
")**** After Method_1 finally Block *****");
ExecutionCount++;
System.out.println(ExecutionCount
+ ")FloatValue = \t" + FloatValue);
ExecutionCount++;
System.out.println(ExecutionCount
+ ")*** The End of Method_1 ****");
} // Method_1
//****************************************************
void promptForCarriageReturn()
{
System.out.println("Press
Enter key to continue");
try
{
int readKey = System.in.read();
if( ('\r' == readKey)
|| ('\n' == readKey)
)
System.in.read();
}
catch(Exception
myException)
{//
do nothing
}
}
//****************************************************
public static void main(String []
args)
{
MultipleExceptions MyMultipleExceptions = new MultipleExceptions();
try
{
System.in.read();
}
catch(Exception
myException)
{//
do nothing
}
}
}
Output:
1)*** The start of Method_1
****
2)FloatValue = -20.0
3)*** Start of Method_1 Try Clause
****
4)*** The start of MultiExceptionMethod ****
5)*** End of MultiExceptionMethod ****
6)*** Start of Method_1 finally
clause ****
7)**** After Method_1 finally Block
*****
8)FloatValue = 10.0
9)*** The End of Method_1 ****
Press Enter key to continue
===========================================
10)*** The start of Method_1
****
11)FloatValue = -20.0
12)*** Start of Method_1 Try Clause
****
13)*** The start of MultiExceptionMethod ****
14)*** Start of
IndexOutOfBoundsException catch Clause
****
15)*** Start of Method_1 finally
clause ****
16)**** After Method_1 finally
Block *****
17)FloatValue = -20.0
18)*** The End of Method_1 ****
Press Enter key to continue
===========================================
19)*** The start of Method_1
****
20)FloatValue = -20.0
21)*** Start of Method_1 Try Clause
****
22)*** The start of MultiExceptionMethod ****
23)*** Start of IOException catch
Clause ****
24)*** Start of Method_1 finally
clause ****
25)**** After Method_1 finally
Block *****
26)FloatValue = -20.0
27)*** The End of Method_1 ****
Press Enter key to continue
===========================================
28)*** The start of Method_1
****
29)FloatValue = -20.0
30)*** Start of Method_1 Try Clause
****
31)*** The start of MultiExceptionMethod ****
32)*** Start of ArithmeticException
catch Clause ****
33)*** Start of Method_1 finally
clause ****
34)**** After Method_1 finally
Block *****
35)FloatValue = -20.0
36)*** The End of Method_1 ****
Write a Java application that has a constructor and a
method. The method should throw three different exceptions and the constructor
should handle all of them. The
constructor should have the “try”, “catch” and “finally” ( the “finally” is optional). Make the constructor, the method and each of
the “try”, “catch” and “finally” blocks write a print message to identify
itself as it has been done in Example # 5.
“Throws” and “Throw”:
“Throws”
and “Throw” are two distinct reserve words in Java. The first is “Throws” and is used in a method declaration to list
the exceptions that the method may throw. The example in the following code is
an illustration where “MultiExceptionMethod” throws three types of
exceptions. “MultiExceptionMethod()”
method has to declare three exception instances for each of the exceptions
thrown.
float MultiExceptionMethod(int PassedInteger)
throws ArithmeticException, // 1
IOException, // 2
IndexOutOfBoundsException // 3
{
…
if(0 ==
PassedInteger)
throw new ArithmeticException(); // 1
else
if(1 == PassedInteger)
throw new IOException(); // 2
else
if(2 == PassedInteger)
throw new
IndexOutOfBoundsException(); // 3
…
}
The second is “Throw” statement which signals an exception condition
has occurred by throwing an exception of the proper type. “Throw” statement will stop the execution
and transfer the execution control to the proper “catch” clause, which the
caller must have. The example in next
code segment is an illustration of “catch” and “finally” clauses, where each
has thrown a different type of exception.
try
{
…
FloatValue =
ExceptionMethod(IntegerValue);
…
}
catch (ArithmeticException MyArithmeticException)
{
…
throw new
IndexOutOfBoundsException();
…
}
finally
{
…
throw new
IOException();
// it may not
return back from the caller!
…
}
The above code has the “catch” and “finally” clauses and
each throws an exception. The important
thing to remember is once the transfer of execution is sent out of the
exception “catch” clause, it may not be returned to the “catch” clause. This is the reason the “finally” clause is
executed before the transfer of execution control takes place. If there is an exception thrown in the
“finally” clause, the execution control will be transferred to the caller and
the remaining statements in the “catch” clause will not be executed. Looking at the above code, the “throw new
IndexOutOfBoundsException();” statement and all the statements listed after it
in the “catch” clause will not be executed.
Test Case:
Example
# 6 is an attempt to show that the execution control may not return to the
“try” or the “catch” clauses, but the “finally” clause will be executed
regardless. Example # 6 declares the
“ExceptionThrowsException” class, which declares the “Method_1()” and the
“ExceptionMethod()” methods. The
“finally” clause of “Method_1()” method
throws an exception and the execution control is sent to the constructor and
never returns back to any of the methods.
The following is a clip of the output showing the execution sequence:
8)*** Start of Method_1 finally
clause ****
9)*** Start of IOException
Constructor catch Clause ****
10)*** The end of
ExceptionThrowsException Constructor****
The application is terminated at the constructor and none of
the methods reached their normal end of executions.
Example # 6:
/*******************************************************************
** This application is an illustration of an Exception
throws an Exception
********************************************************************/
import java.io.*;
import java.lang.*;
public class ExceptionThrowsException
{
int ExecutionCount = 0;
public ExceptionThrowsException()
{
ExecutionCount++;
System.out.println(ExecutionCount
+ ")*** The
start of ExceptionThrowsException Constructor****");
try
{
ExecutionCount++;
System.out.println(ExecutionCount
+ ")*** Start of Try Constructor Clause ****");
Method_1(0);
}
catch
(IOException MyIOException)
{
ExecutionCount++;
System.out.println(ExecutionCount
+ ")*** Start of IOException Constructor
catch Clause ****");
}
catch
(IndexOutOfBoundsException
MyIndexOutOfBoundsException)
{
ExecutionCount++;
System.out.println(ExecutionCount
+ ")*** Start of
IndexOutOfBoundsException Constructor catch Clause ****");
}
ExecutionCount++;
System.out.println(ExecutionCount
+ ")*** The end of
ExceptionThrowsException Constructor****");
}
//**********************************************
float ExceptionMethod(int
PassedInteger)
throws ArithmeticException
{
ExecutionCount++;
System.out.println(ExecutionCount
+ ")*** The start of
ExceptionMethod ****");
if(0 ==
PassedInteger)
throw new ArithmeticException();
ExecutionCount++;
System.out.println(ExecutionCount
+ ")*** End of ExceptionMethod
****");
return
(PassedInteger);
}
// ExceptionMethod
//**********************************************
void Method_1(int IntegerValue)
throws IOException,
IndexOutOfBoundsException
{
float FloatValue = -20;
ExecutionCount++;
System.out.println(ExecutionCount
+ ")*** The start of Method_1 ****");
ExecutionCount++;
System.out.println(ExecutionCount
+ ")FloatValue = \t" + FloatValue);
try
{
ExecutionCount++;
System.out.println(ExecutionCount
+ ")*** Start of Method_1 Try Clause ****");
FloatValue =
ExceptionMethod(IntegerValue);
}
catch
(ArithmeticException
MyArithmeticException)
{
ExecutionCount++;
System.out.println(ExecutionCount
+ ")***
Start of ArithmeticException catch Clause
****");
throw new
IndexOutOfBoundsException();
}
finally
{
ExecutionCount++;
System.out.println(ExecutionCount
+ ")***
Start of Method_1 finally clause
****");
throw new
IOException();
}
/*************
** Statments not reachable error and we have to comment them
ExecutionCount++;
System.out.println(ExecutionCount
+ "**** After Method_1 finally Block *****");
ExecutionCount++;
System.out.println(ExecutionCount
+ ")FloatValue = \t" + FloatValue);
****/
} // Method_1
//***************************************************
public static void main(String []
args)
{
ExceptionThrowsException MyExceptionThrowsException
= new ExceptionThrowsException();
try
{
System.in.read();
}
catch(Exception
myException)
{//
do nothing
}
}
}
Output:
1)*** The start of
ExceptionThrowsException Constructor****
2)*** Start of Try Constructor Clause
****
3)*** The start of Method_1
****
4)FloatValue = -20.0
5)*** Start of Method_1 Try Clause
****
6)*** The start of ExceptionMethod
****
7)*** Start of ArithmeticException
catch Clause ****
8)*** Start of Method_1 finally
clause ****
9)*** Start of IOException
Constructor catch Clause ****
10)*** The end of
ExceptionThrowsException Constructor****
Write a Java application that has a constructor and two
methods. The methods should throw different exceptions. The constructor should handle call one of
the method, which in turn calls the second method. Write the proper code to
hand these nesting of exceptions, as it has been done in Example # 6. Make the
constructor, the methods and each of the “try” and “catch” blocks write a print
message to identify itself as it has been done in Example # 6.
